show me your custom x-members

1565 Views 21 Replies 11 Participants Last post by  rgunn1,
R
I'm looking for pictures of custom tranny crossmembers, with and without the t-case reindexed.

Thanks
Robie
Reply
Save
Like
1 - 20 of 22 Posts
R
anyone?
Reply
Save
Like
JasonB
there are a couple pics posted somewhere here. one from dj, one from those canada dudes and maybe one other.
Reply
Save
Like
R
Found one

[img=288x216]http://www.pavementsucks.com/forums/attachments/200303/attachment-162627.jpg[/img]

:flipoff:
See less See more
Reply
Save
Like
B
i also wanted to see some of these.. post more pics if you find any
Reply
Save
Like
R
Same one from the back...

[img=320x240]http://www.pavementsucks.com/forums/attachments/200302/attachment-129263.jpg[/img]
See less See more
Reply
Save
Like
J
i can take pix of the one on my bronco if that would help any im guessing a xmember is a cross member???
Reply
Save
Like
T
Spawn X's Dakota one I made...

[img=500x258]http://www.thurenfabrication.com/dakcross.jpg[/img]
See less See more
Reply
Save
Like
Boz
On 2005-11-30 12:29, rgunn1 wrote:
Same one from the back...

http://www.pavementsucks.com/forums/attachments/200302/attachment-129263.jpg
Click to expand...

Is that Superram's truck? Anybody know what happened to that guy?
Reply
Save
Like
djgaston
I heard he sold his truck quite a while ago. Somebody asked about him last year and I believe that was the response.

Here is mine:

[img=500x375]http://www.djgaston.com/offroad/aps/aps13.jpg[/img]

[img=500x375]http://www.djgaston.com/offroad/aps/aps14.jpg[/img]

[img=500x375]http://www.djgaston.com/offroad/aps/aps15.jpg[/img]

[img=500x375]http://www.djgaston.com/offroad/aps/aps11.jpg[/img]

[img=500x375]http://www.djgaston.com/offroad/aps/transcrossmember1.jpg[/img]
See less See more
5
Reply
Save
Like
A
On 2005-11-30 15:48, djgaston wrote:
I heard he sold his truck quite a while ago. Somebody asked about him last year and I believe that was the response.

Here is mine:

http://www.djgaston.com/offroad/aps/aps13.jpg

http://www.djgaston.com/offroad/aps/aps14.jpg

http://www.djgaston.com/offroad/aps/aps15.jpg

http://www.djgaston.com/offroad/aps/aps11.jpg

http://www.djgaston.com/offroad/aps/transcrossmember1.jpg
Click to expand...

That thing looks really nice, is there some sort of reinforced brace or asomething under where you cut I a$$ume? dont know that much bout undersides of the ram.
Reply
Save
Like
djgaston
The stock crossmember is extremely thin. Where we cut it, basically we took 4 pieces of 1/2" plate and boxed it all in. You can see the 3 pieces that make the "U" shape, and then there is one more underneath, which you can see in the picture with it installed. It's all painted so you can't even tell what isn't stock now when you look at it.

I ended up having to modify it again later, once I switched from a CV front driveshaft to dual U joints and used a yoke on the transfer case. That moves the mounting point back several inches and the driveshaft was able to hit the lip on the crossmember, so I had to notch it out pretty good. That won't be a problem with the new axles though.
Reply
Save
Like
R
On 2005-11-30 16:18, djgaston wrote:
The stock crossmember is extremely thin. Where we cut it, basically we took 4 pieces of 1/2" plate and boxed it all in. You can see the 3 pieces that make the "U" shape, and then there is one more underneath, which you can see in the picture with it installed. It's all painted so you can't even tell what isn't stock now when you look at it.

I ended up having to modify it again later, once I switched from a CV front driveshaft to dual U joints and used a yoke on the transfer case. That moves the mounting point back several inches and the driveshaft was able to hit the lip on the crossmember, so I had to notch it out pretty good. That won't be a problem with the new axles though.
Click to expand...

You got any pics of that front driveshaft setup?

-Robie
Reply
Save
Like
djgaston
The new one? No, not any good ones. It's simple... as simple as a driveshaft can be. Regular fixed yoke on the transfer case, 1350 super flex U joint, a few feet of tube, another 1350 super flex U joint, 1350 yoke again. My driveshaft angle went from a little over 25 degrees to right about 21 degrees just from that one simple change. Plus it's a cheap driveshaft to build and repair.
Reply
Save
Like
R

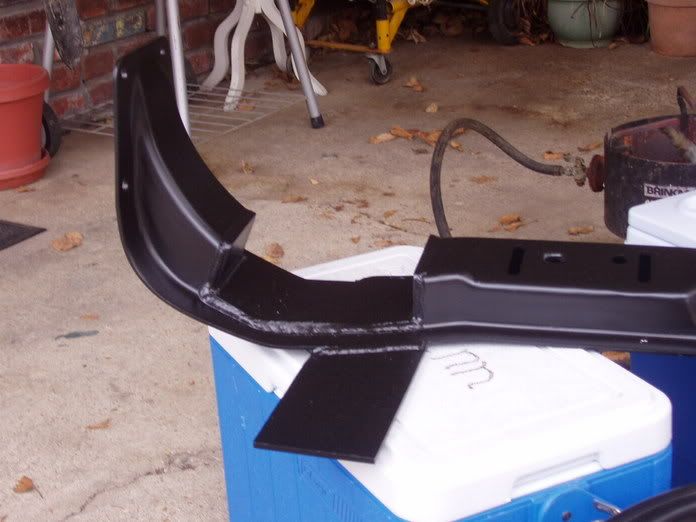

Worked on mine this weekend. Phil Losh at searcher's 4wd did the welding for me.



[img=500x375]http://i9.photobucket.com/albums/a82/Rgunn1/Miscellaneous/P1010110.jpg[/img]

[img=500x375]http://i9.photobucket.com/albums/a82/Rgunn1/Miscellaneous/P1010109.jpg[/img]

Funny pics from the work day:



[img=500x375]http://i15.photobucket.com/albums/a382/freshmeatxj/4x4/100_0015.jpg[/img]

[img=500x375]http://i15.photobucket.com/albums/a382/freshmeatxj/4x4/100_0017.jpg[/img]
See less See more
4
Reply
Save
Like
Archer
I cut almost 2" off of my crossmember and reinforced it with diamondplate so I could tuck a sturdier skid plate on it that wouldn't hang down like the OEM's...

[img=500x377]http://memimage.cardomain.net/member_images/6/web/258000-258999/258080_125_full.jpg[/img]

[img=500x377]http://memimage.cardomain.net/member_images/6/web/258000-258999/258080_266_full.jpg[/img]
See less See more
2
Reply
Save
Like
Robert97dodge
Why did you have to redo the crossmember? Does that have to be done when you install a reindex ring? I will be runnning 11"s of susp lift one day and I need to do something with my front DS.
Reply
Save
Like
Archer
After 7"-8" the front DS angle gets too steep so you have to reindex your t-case to flatten it out some either that or get a HP like me... :D:
Reply
Save
Like
Robert97dodge
On 2005-12-11 18:36, Archer wrote:

After 7"-8" the front DS angle gets too steep so you have to reindex your t-case to flatten it out some either that or get a HP like me... :D:
Click to expand...

I am running 8 now and it is fine. I havent had any problems with it all. Do you know if a reindex ring will be enough for 11"s of lift or will have I have to get a completely differenct shaft??
Reply
Save
Like
Archer
Couldn't tell you, never built a truck with 11" of lift. Never seen a reason to but I would guess your gonna need a custom shaft even with a index ring...
Reply
Save
Like
