Pics of my Hydro a$$ist done!!

1694 Views 22 Replies 14 Participants Last post by JasonB, Dec 10, 2005

dod

Discussion Starter · Dec 5, 2005

3

Well im finally done! It steer's great too! I can tell a big difference from the stock steering! And i went out and tested on some rocks too and still works great!

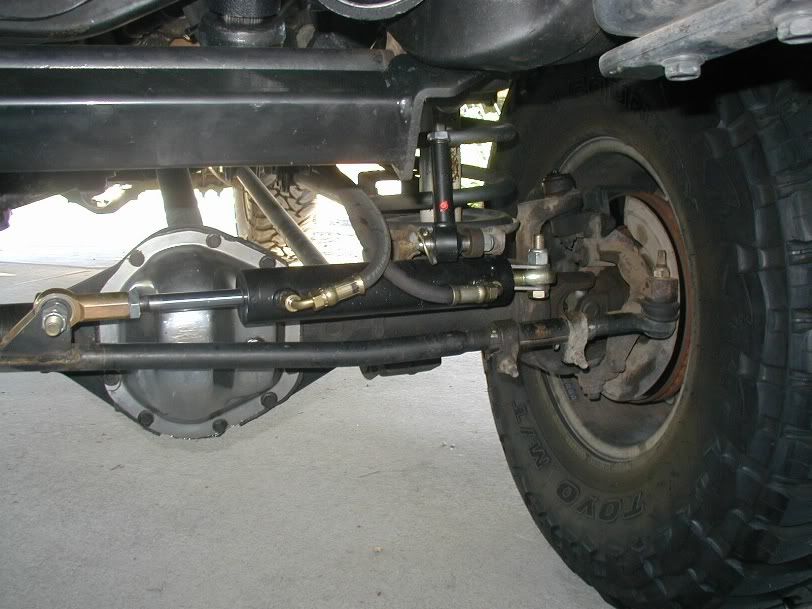

It took awhile to figure out where i was going to put it, i deciceded to mount it under the left coil which worked out perfect! here are some pictures..

[img=500x375]http://i12.photobucket.com/albums/a225/SAcTownBigB/opxfidisa.jpg[/img]
[img=500x375]http://i12.photobucket.com/albums/a225/SAcTownBigB/opxfidisa1.jpg[/img]
Testing it out!!

[img=500x375]http://i12.photobucket.com/albums/a225/SAcTownBigB/255805126_l.jpg[/img]

See less See more

1 - 20 of 23 Posts

chizzle1

· #2 · Dec 5, 2005

that looks fookin awesome! Nice job on the install. :bigthumb:

WMIF

· #3 · Dec 5, 2005

you sure that clears the track bar? which bar are you running?

Glenshadow

· #4 · Dec 5, 2005

Unless I am retarded.. how do you see that interferring with the track bar ?

I just don't see it going over that far...

WMIF

· #5 · Dec 5, 2005

i know that would be an issue at least with the dt crap bar. they push the frame side of it forward to clear the diff. i think i remember looking to mount in that spot and finding that it would contact.

dod

Discussion Starter · #6 · Dec 5, 2005

Yeah it clear's everything!

bradmo42

· #7 · Dec 5, 2005

looks good i pmed you about it!

halo 216

· #8 · Dec 5, 2005

Make a kit yourself or buy the whole sha bang?

SilverDiesel

· #9 · Dec 5, 2005

is it me or is your tie rod really bent up?

SmokenRam!

· #10 · Dec 5, 2005

Nice :bigthumb:

dod

Discussion Starter · #11 · Dec 6, 2005

On 2005-12-05 15:27, SilverDiesel wrote:
is it me or is your tie rod really bent up?

Its you!

:

DeerHunter

· #12 · Dec 6, 2005

On 2005-12-05 15:27, SilverDiesel wrote:
is it me or is your tie rod really bent up?

Just the way they come...mine is like that too

Archer

· #13 · Dec 6, 2005

Nice install... :bigthumb:

What trackbar are you running, like said before, the DT won't give you enuff room to run it in that location becasue their offset so far forward...

ALLAXCS

· #14 · Dec 6, 2005

Here is mine with the DT track bar. But, I have changed the steering. My tie rod is a little bit forward and higher than stock.
[img=500x375]http://memimage.cardomain.net/member_images/8/web/452000-452999/452350_160_full.jpg[/img]

See less See more

ALLAXCS

· #15 · Dec 6, 2005

By the way, Have you noticed that turning right is easier than turning left?

Robert97dodge

· #16 · Dec 6, 2005

Which cylinder is that? I have been looking at the PSC stuff.

JasonB

· #17 · Dec 6, 2005

damn, you beat me to it. i have had my setup sitting for a year now...

i've been waiting on Don's steering stuff to show up, and its now supposed to be here next week hopefully. maybe i can get all my stuff changed over the hydro installed this month sometime!

looks good in that location. btw guys, his truck does not flex that much unfortunatly (whiplash lift has stiff springs and compression is minimal due to link and mount locations) so he should not have any clearance issues.

WMIF

· #18 · Dec 6, 2005

On 2005-12-05 17:07, ALLAXCS wrote:
By the way, Have you noticed that turning right is easier than turning left?

that is the result of an unbalanced cylinder. the piston extending has more power because it doesnt have the rod taking up that volume. that allows more fluid which means more power.

mudpuppy

· #19 · Dec 6, 2005

is the bracket welded to the tie rod?
if so andthe tie rod goes bad you have to cut it off and reweld it.

dod

Discussion Starter · #20 · Dec 6, 2005

On 2005-12-05 17:20, The Boss wrote:
damn, you beat me to it. i have had my setup sitting for a year now...

i've been waiting on Don's steering stuff to show up, and its now supposed to be here next week hopefully. maybe i can get all my stuff changed over the hydro installed this month sometime!

looks good in that location. btw guys, his truck does not flex that much unfortunatly (whiplash lift has stiff springs and compression is minimal due to link and mount locations) so he should not have any clearance issues.

Yeah i did huh! I had the guys over at River city differential help me with the install!! They did a great job!
